# Occlusal Test

## To measure the balance of dental occlusion, the patient must perform two clenching tests of five seconds each - the first with cotton rolls, the second one without. Once these trials are done, the report is automatically generated.

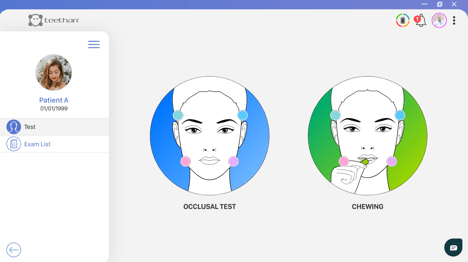

- To proceed with a new acquisition, from the Home Screen of the software, select the desired patient. Then, click on Occlusal Test

![](https://support.teethan.com/hs-fs/hubfs/Screenshot%202023-01-26%20alle%2009-39-20-png.png?width=468&height=263&name=Screenshot%202023-01-26%20alle%2009-39-20-png.png)

- Insert the cotton rolls between the arches on the second premolars and molars

![](https://support.teethan.com/hs-fs/hubfs/Screenshot%202023-01-26%20alle%2009-41-58-png.png?width=251&height=232&name=Screenshot%202023-01-26%20alle%2009-41-58-png.png)









- Ask the patient to clench their teeth as hard as possible

  ![](https://support.teethan.com/hs-fs/hubfs/Screenshot%202023-01-26%20alle%2009-41-58%202-png.png?width=251&height=238&name=Screenshot%202023-01-26%20alle%2009-41-58%202-png.png)









- To start the Calibration, press the Rec button ![](https://support.teethan.com/hs-fs/hubfs/Screenshot%202023-01-26%20alle%2009-46-17-png.png?width=33&height=33&name=Screenshot%202023-01-26%20alle%2009-46-17-png.png). The recording will stop automatically after five seconds

![](https://support.teethan.com/hubfs/Screenshot%202023-01-26%20alle%2009-46-41-png.png)

⚠️🚨*Teethan's Calibration Test is mandatory and it is meant to adapt the technology to each and every patient's neuromuscular strategy of occlusion.*

- At the end of the Calibration, you will see - on the left -its results. To perform multiple Calibrations, just press Rec again.
- Once you have acquired the Occlusal Calibration Test, click on ![](https://support.teethan.com/hs-fs/hubfs/Raggruppa%206198-png.png?width=103&height=25&name=Raggruppa%206198-png.png) to move on to the final part of the Test.

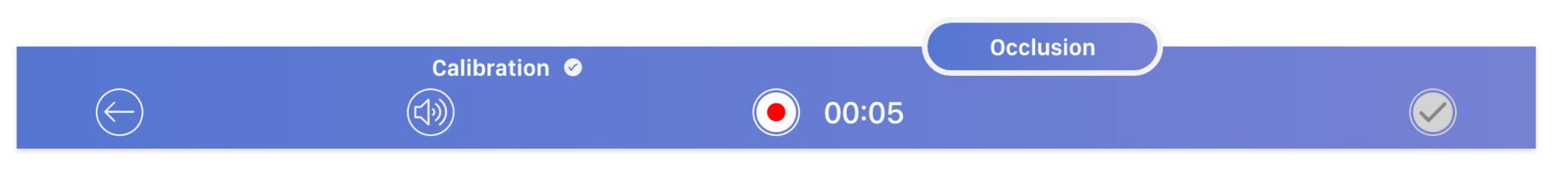

- After removing the cotton rolls, ask the patient to clench as hard as possible to allow dental intercuspation. To start the recording, press the Rec ![](https://support.teethan.com/hs-fs/hubfs/Screenshot%202023-01-26%20alle%2009-46-17-png.png?width=33&height=33&name=Screenshot%202023-01-26%20alle%2009-46-17-png.png) button

![](https://support.teethan.com/hubfs/Screenshot%202023-01-26%20alle%2010-08-32-png.png)

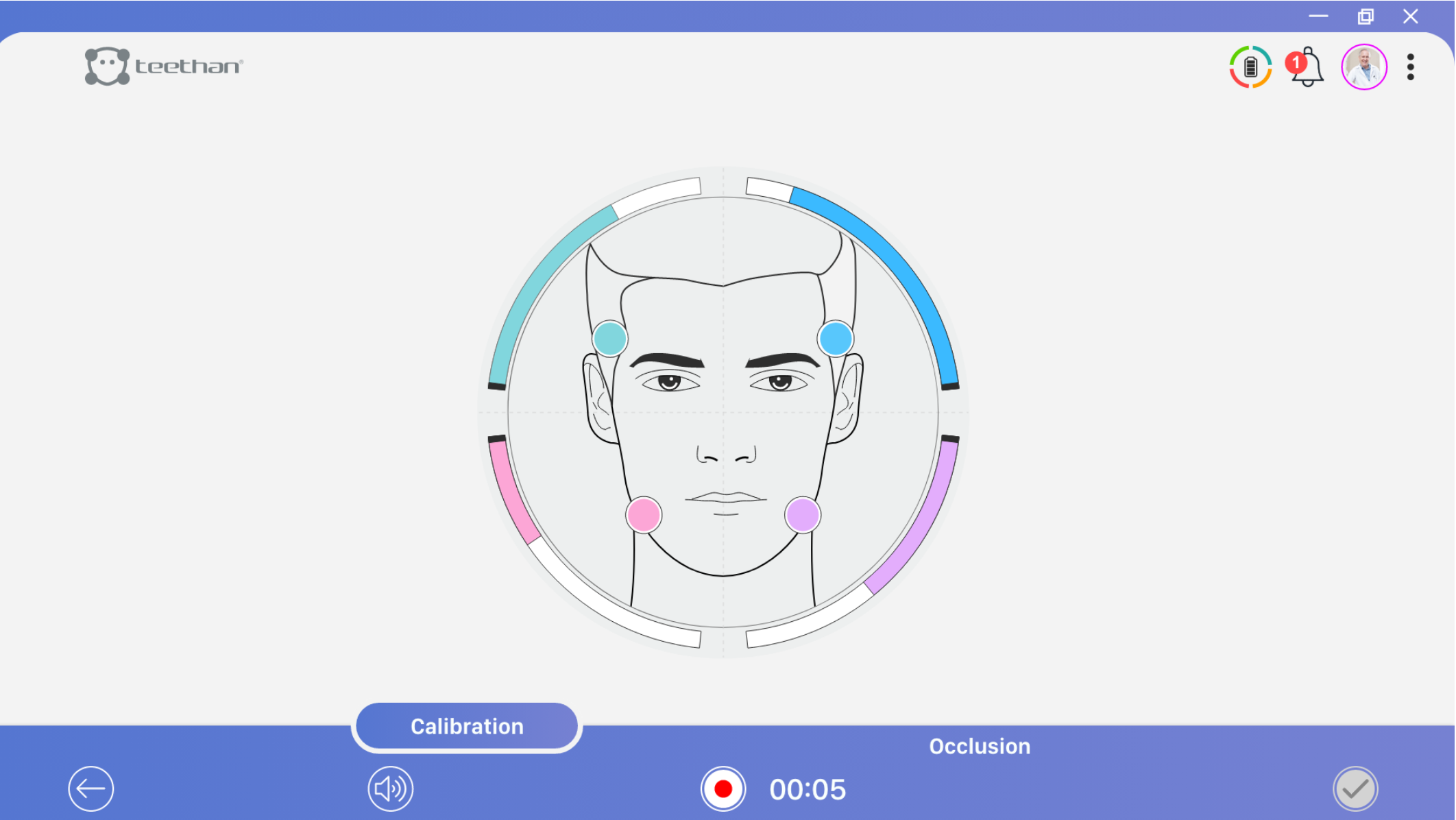

During the test execution, the electrical activity of the analyzed muscles is displayed in real-time, using bars that get filled with color proportionally to the degree of muscular activation. Each of the four muscles is identified by a characteristic color:

![](https://support.teethan.com/hubfs/Screenshot%202023-01-26%20alle%2010-39-28-png.png)

**Right Masseter**:

![](https://support.teethan.com/hs-fs/hubfs/turchese-png.png?width=27&height=27&name=turchese-png.png)

**Left Masseter**:

![](https://support.teethan.com/hs-fs/hubfs/azzurrino-png.png?width=27&height=27&name=azzurrino-png.png)

  **Right Temporalis**:

![](https://support.teethan.com/hs-fs/hubfs/rosa%20chiaro-png.png?width=27&height=27&name=rosa%20chiaro-png.png)

 **Left Temporalis**:

![](https://support.teethan.com/hs-fs/hubfs/lilla%20chiaro-png.png?width=27&height=27&name=lilla%20chiaro-png.png)
